開啟一個新專案，名稱 FoodPin

把 ViewController.swift 按下右鍵刪除

也把畫面上的都刪除

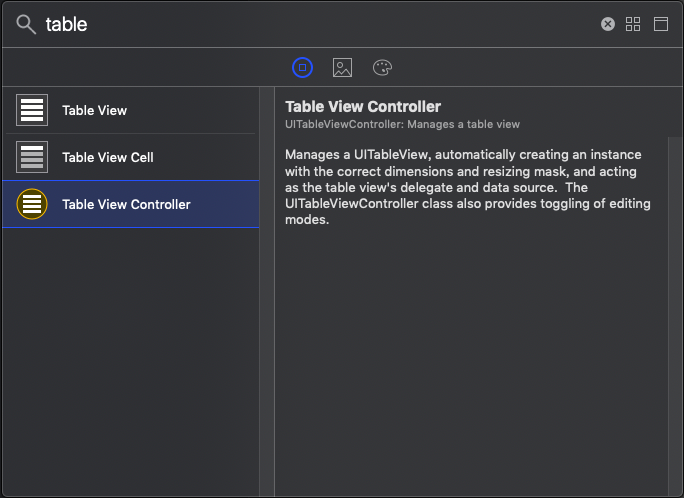

新增一個 Table View Controller

並且把 Is Initial View Controller 打勾

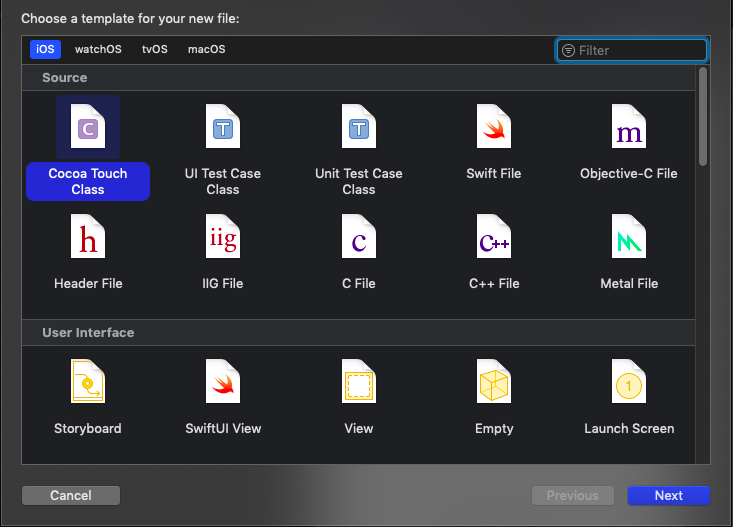

對著專案資料夾按下滑鼠右鍵 New File

選擇 Cocoa Touch Class 按下 Next

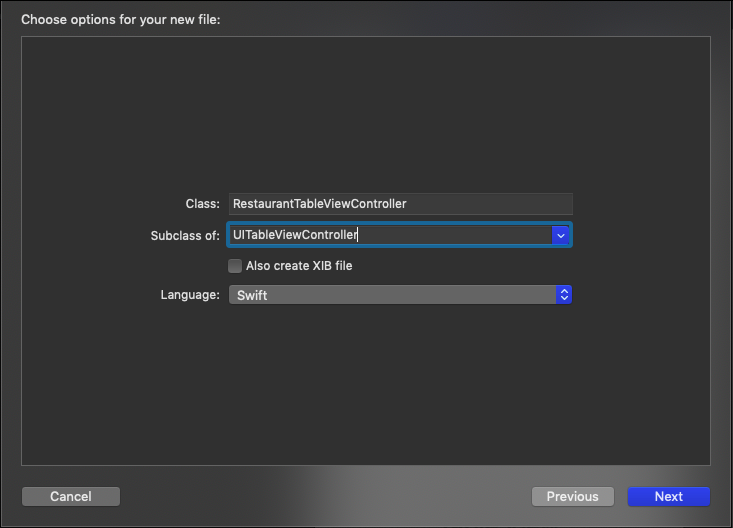

名稱設定為RestaurantTableViewController，Subclass of: UITableViewController

回到 Main.storyboard 點到最上層的 Restaurant View Controller

將 class 改為 RestaurantTableViewController

點到 Datacell

將表格形態改為 Basic ID改為 Datacell

進入 RestaurantTableViewController 程式碼部分，輸入以下程式碼

import UIKit
class RestaurantTableViewController: UITableViewController {
var restaurantNames = ["Cafe Deadend", "Homei", "Teakha"]
var restaurantImages = ["cafedeadend", "homei", "teakha"]
override func viewDidLoad() {
super.viewDidLoad()
// Uncomment the following line to preserve selection between presentations
// self.clearsSelectionOnViewWillAppear = false
// Uncomment the following line to display an Edit button in the navigation bar for this view controller.
// self.navigationItem.rightBarButtonItem = self.editButtonItem
}
// MARK: - Table view data source
override func numberOfSections(in tableView: UITableView) -> Int {
// #warning Incomplete implementation, return the number of sections
return 1
}
override func tableView(_ tableView: UITableView, numberOfRowsInSection section: Int) -> Int {
// #warning Incomplete implementation, return the number of rows
return restaurantNames.count
}
override func tableView(_ tableView: UITableView, cellForRowAt indexPath: IndexPath) -> UITableViewCell {
let cell = tableView.dequeueReusableCell(withIdentifier: "Datacell", for: indexPath)
cell.textLabel?.text = restaurantNames[indexPath.row]
cell.imageView?.image = UIImage(named: restaurantImages[indexPath.row])
return cell
}
/*
// Override to support conditional editing of the table view.
override func tableView(_ tableView: UITableView, canEditRowAt indexPath: IndexPath) -> Bool {
// Return false if you do not want the specified item to be editable.
return true
}
*/
/*
// Override to support editing the table view.
override func tableView(_ tableView: UITableView, commit editingStyle: UITableViewCell.EditingStyle, forRowAt indexPath: IndexPath) {
if editingStyle == .delete {
// Delete the row from the data source
tableView.deleteRows(at: [indexPath], with: .fade)
} else if editingStyle == .insert {
// Create a new instance of the appropriate class, insert it into the array, and add a new row to the table view
}
}
*/
/*
// Override to support rearranging the table view.
override func tableView(_ tableView: UITableView, moveRowAt fromIndexPath: IndexPath, to: IndexPath) {
}
*/
/*
// Override to support conditional rearranging of the table view.
override func tableView(_ tableView: UITableView, canMoveRowAt indexPath: IndexPath) -> Bool {
// Return false if you do not want the item to be re-orderable.
return true
}
*/
/*
// MARK: - Navigation
// In a storyboard-based application, you will often want to do a little preparation before navigation
override func prepare(for segue: UIStoryboardSegue, sender: Any?) {
// Get the new view controller using segue.destination.
// Pass the selected object to the new view controller.
}
*/
}

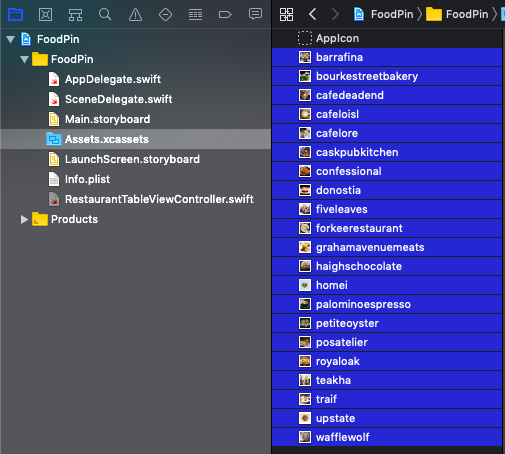

將這個裡面的所有圖片拉到 Assets.xcassets

simpletable-images2 下載

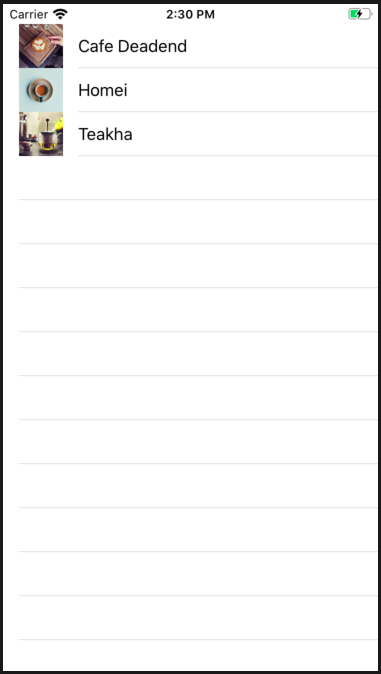

按下模擬器就可以顯示當前的圖片

選擇 datacell

將 style 改為 Custom

將列高改為 82

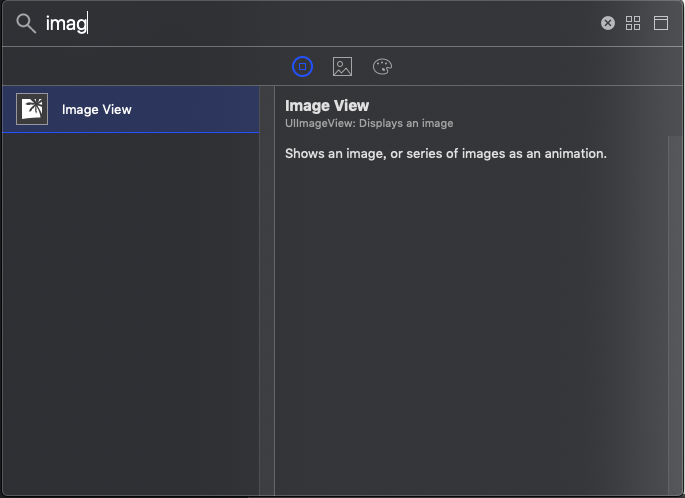

新增一個 Image View

放到 Content View 裡面

將 Image View 的大小改為

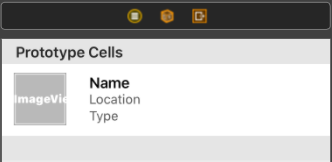

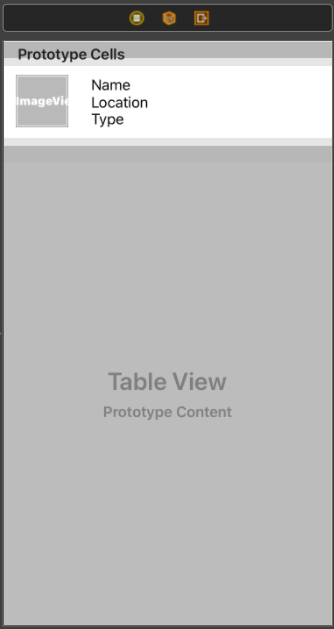

加入三個 Label ，並且改文字

將第一個 Name 的樣式改為 Headline

第二三個樣式改為 Subhead，並且將顏色改為 Darkgray

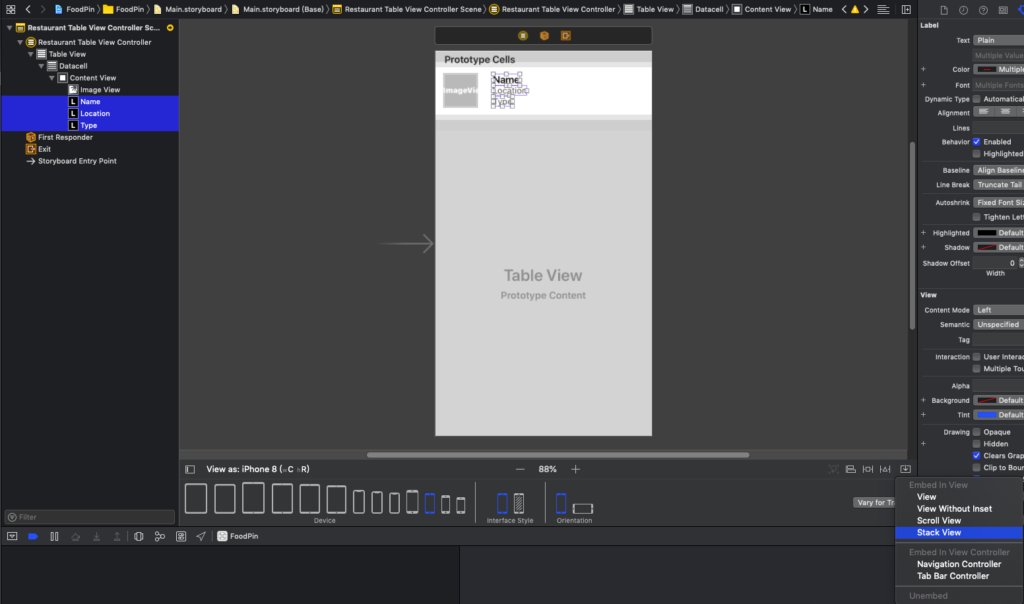

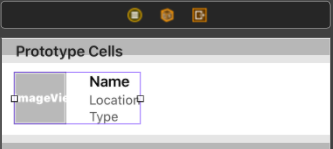

將三個控制項選起來，選擇 Stack view

將 Spacing 改為 1

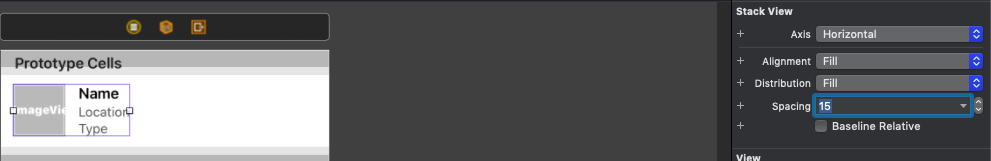

將文字的 Stack view 以及左邊的圖片選起來做 Stack view

將 Spacing 改為 15

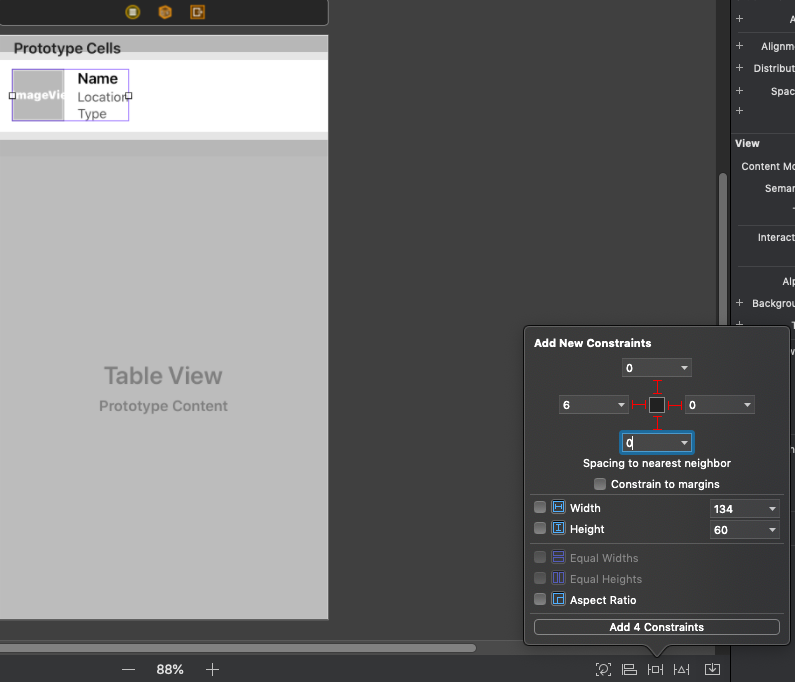

設定約束條件

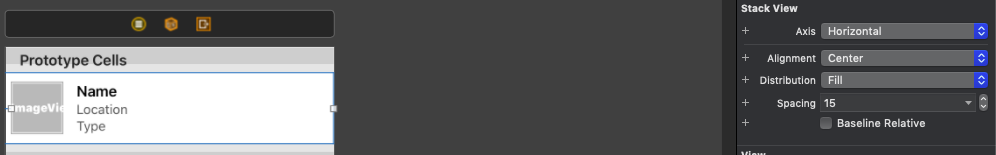

將這個 Stack view 的 Alignment 改為 Center

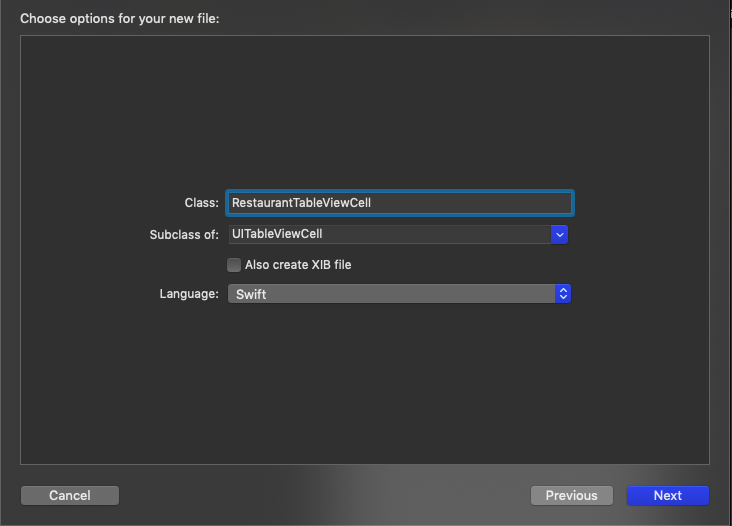

在這個專案底下建立一個新的 Cocoa 類別，做以下設定

進入 RestaurantTableViewCell.swift 新增以下程式碼

import UIKit
class RestaurantTableViewCell: UITableViewCell {
@IBOutlet var nameLabel: UILabel!
@IBOutlet var locationLabel: UILabel!
@IBOutlet var typeLabel: UILabel!
@IBOutlet var thumbnailImageView: UIImageView!
override func awakeFromNib() {
super.awakeFromNib()
// Initialization code
}
override func setSelected(_ selected: Bool, animated: Bool) {
super.setSelected(selected, animated: animated)
// Configure the view for the selected state
}
}

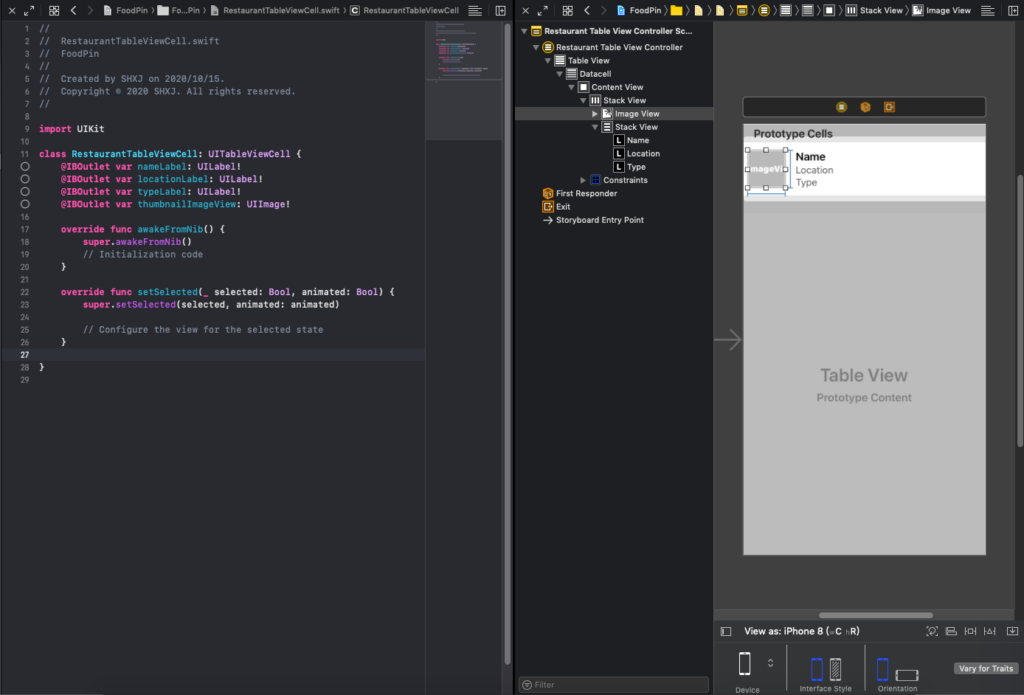

切換到兩邊的排版

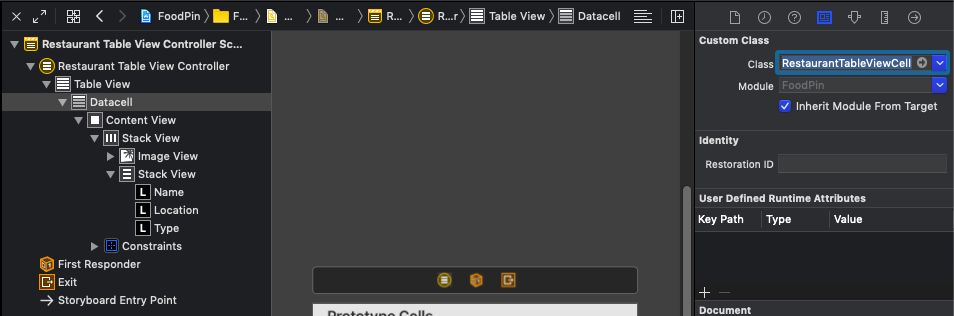

點到 Datacell 選擇 Class 為 RestaurantTableViewCell

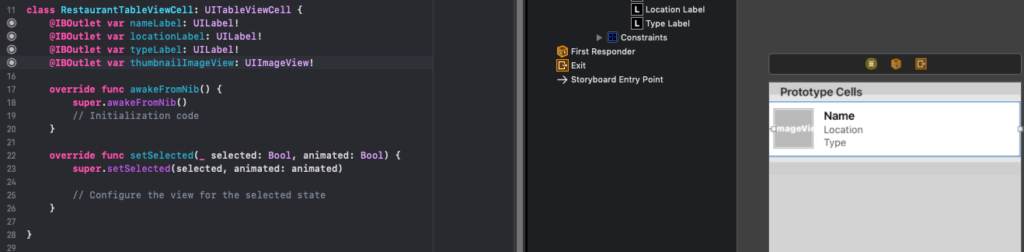

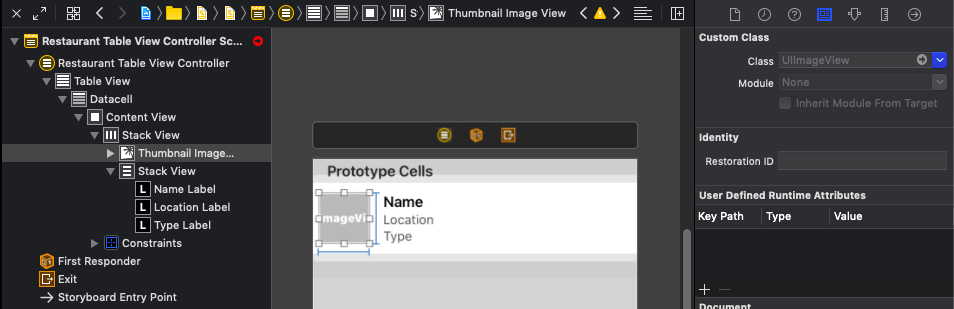

將四個物件連連看連起來

將 RestaurantTableViewController 改為以下的程式碼

import UIKit
class RestaurantTableViewController: UITableViewController {
var restaurantNames = ["Cafe Deadend", "Homei", "Teakha"]
var restaurantImages = ["cafedeadend", "homei", "teakha"]
override func viewDidLoad() {
super.viewDidLoad()
// Uncomment the following line to preserve selection between presentations
// self.clearsSelectionOnViewWillAppear = false
// Uncomment the following line to display an Edit button in the navigation bar for this view controller.
// self.navigationItem.rightBarButtonItem = self.editButtonItem
}
// MARK: - Table view data source
override func numberOfSections(in tableView: UITableView) -> Int {
// #warning Incomplete implementation, return the number of sections
return 1
}
override func tableView(_ tableView: UITableView, numberOfRowsInSection section: Int) -> Int {
// #warning Incomplete implementation, return the number of rows
return restaurantNames.count
}
override func tableView(_ tableView: UITableView, cellForRowAt indexPath: IndexPath) -> UITableViewCell {
let cell = tableView.dequeueReusableCell(withIdentifier: "Datacell", for: indexPath) as! RestaurantTableViewCell
cell.nameLabel.text = restaurantNames[indexPath.row]
cell.thumbnailImageView.image = UIImage(named: restaurantImages[indexPath.row])
return cell
}
/*
// Override to support conditional editing of the table view.
override func tableView(_ tableView: UITableView, canEditRowAt indexPath: IndexPath) -> Bool {
// Return false if you do not want the specified item to be editable.
return true
}
*/
/*
// Override to support editing the table view.
override func tableView(_ tableView: UITableView, commit editingStyle: UITableViewCell.EditingStyle, forRowAt indexPath: IndexPath) {
if editingStyle == .delete {
// Delete the row from the data source
tableView.deleteRows(at: [indexPath], with: .fade)
} else if editingStyle == .insert {
// Create a new instance of the appropriate class, insert it into the array, and add a new row to the table view
}
}
*/
/*
// Override to support rearranging the table view.
override func tableView(_ tableView: UITableView, moveRowAt fromIndexPath: IndexPath, to: IndexPath) {
}
*/
/*
// Override to support conditional rearranging of the table view.
override func tableView(_ tableView: UITableView, canMoveRowAt indexPath: IndexPath) -> Bool {
// Return false if you do not want the item to be re-orderable.
return true
}
*/
/*
// MARK: - Navigation
// In a storyboard-based application, you will often want to do a little preparation before navigation
override func prepare(for segue: UIStoryboardSegue, sender: Any?) {
// Get the new view controller using segue.destination.
// Pass the selected object to the new view controller.
}
*/
}

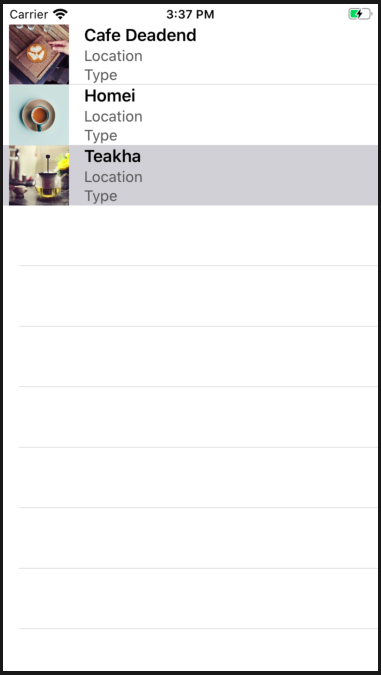

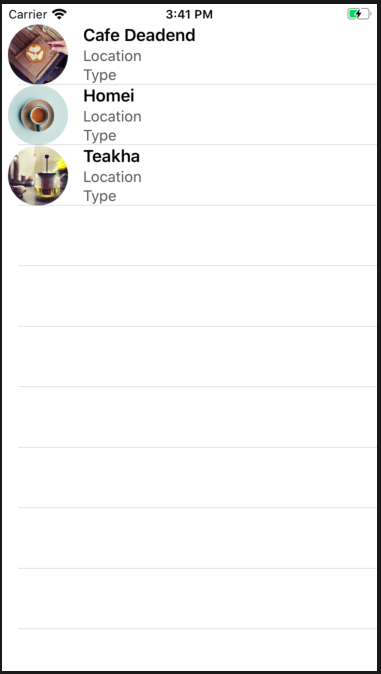

執行模擬器看一下
