占卜輪盤

遊戲素材

開始製作遊戲

新建一個 2D 專案

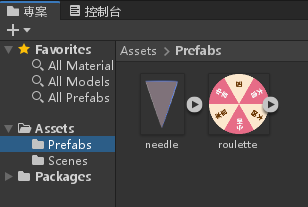

將開頭的兩個素材拉進專案的資源管理器

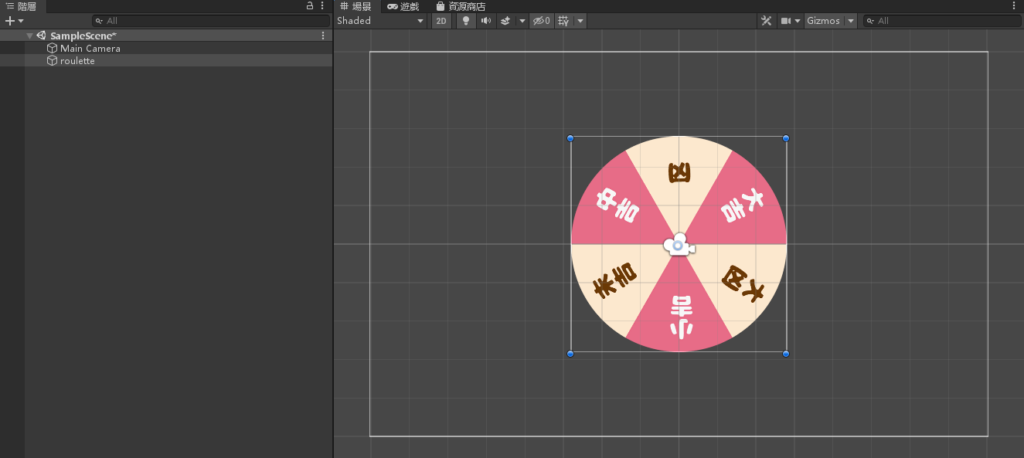

將 roulette (輪盤) 拉進階層視窗

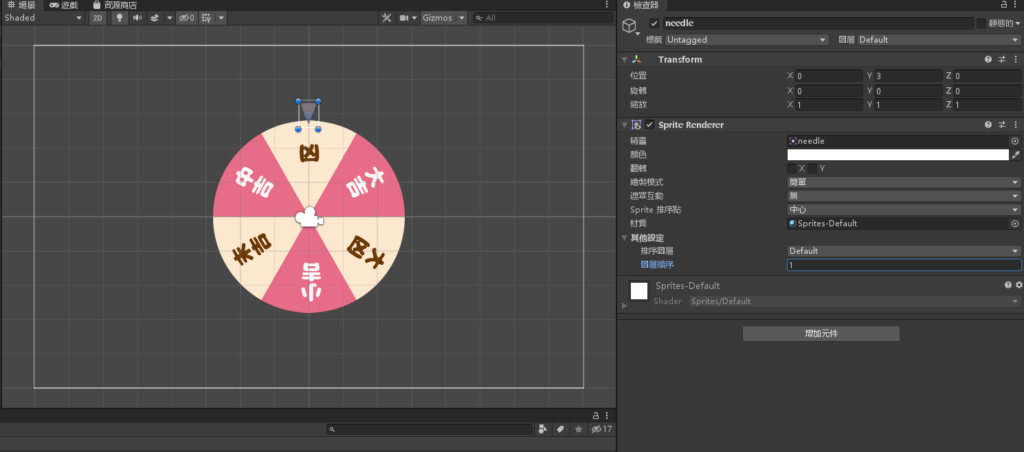

同樣的將 needle (指針) 拉進階層視窗,並設定屬性位置為 0,3,0,圖層順序1

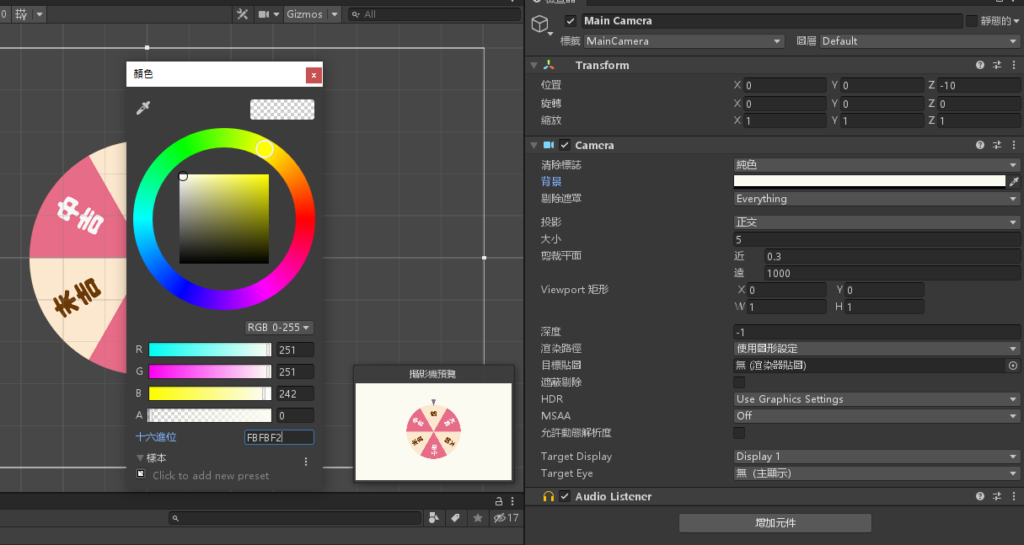

選到階層視窗的 Main Camera ,將背景顏色修改為 FBFBF2 (淺黃色)

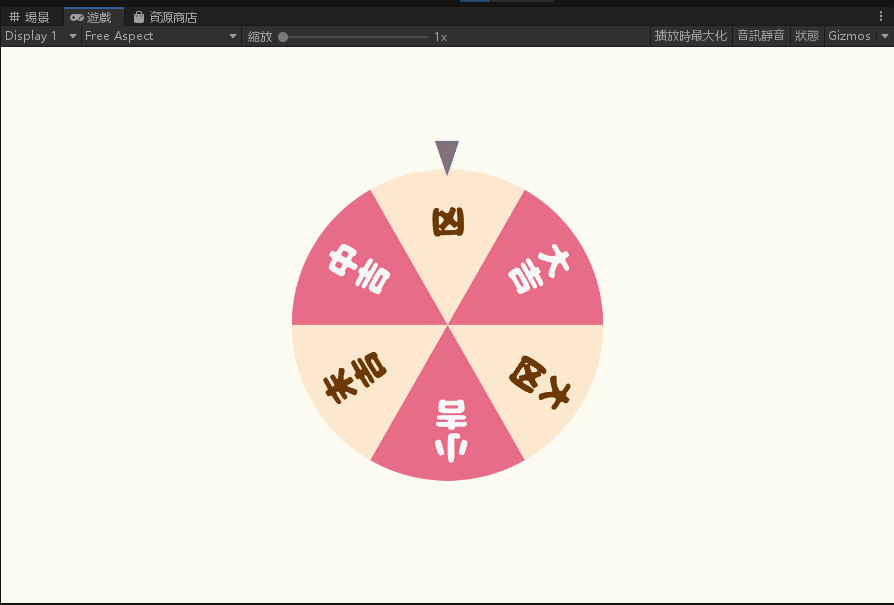

完成

撰寫 C# 腳本

新增一個 C# 腳本,名為「RouletteController」

將以下程式碼新增至腳本

using System.Collections;
using System.Collections.Generic;
using UnityEngine;
public class RouletteController : MonoBehaviour
{
// Start is called before the first frame update
float rotSpeed = 0;
void Start()
{
}
// Update is called once per frame
void Update()
{
if (Input.GetMouseButtonDown(0))
rotSpeed = Random.Range(10.0f, 30.0f);
transform.Rotate(0, 0, rotSpeed);
rotSpeed *= 0.995f;
}
}

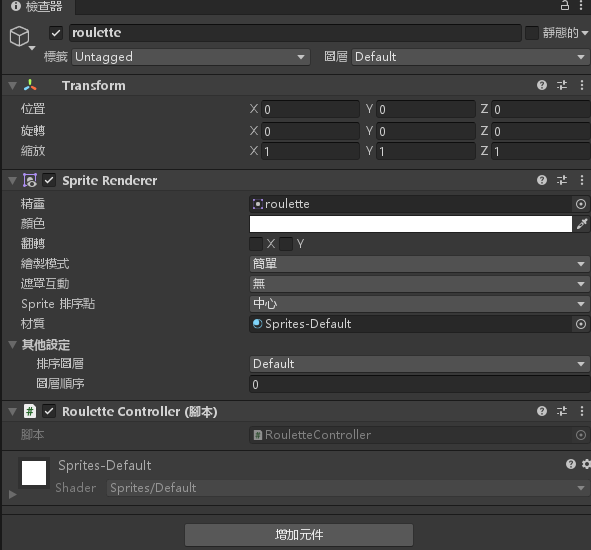

將 RouletteController 腳本新增到 roulette 物件底下

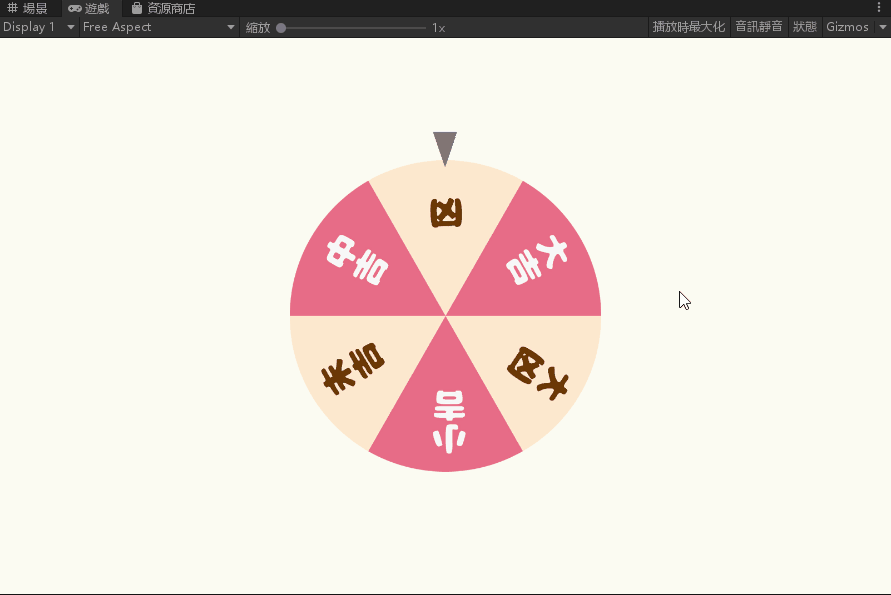

完成,看看結果吧

讓程式知道你現在停在哪裡

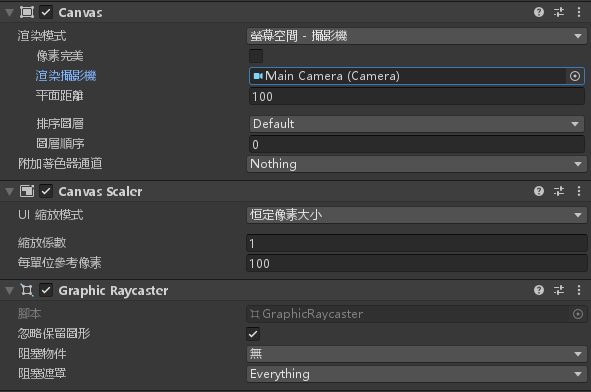

加入一個文字的 UI 在階層視窗,設定 Canvas 的渲染模式為螢幕空間 – 攝影機

渲染攝影機設為 MainCamera

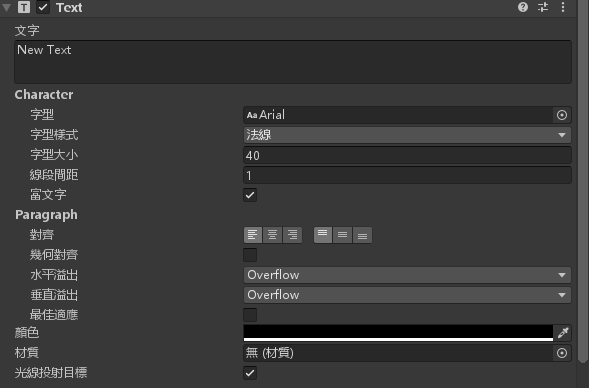

設定一下文字的屬性讓他可以在螢幕上被看到

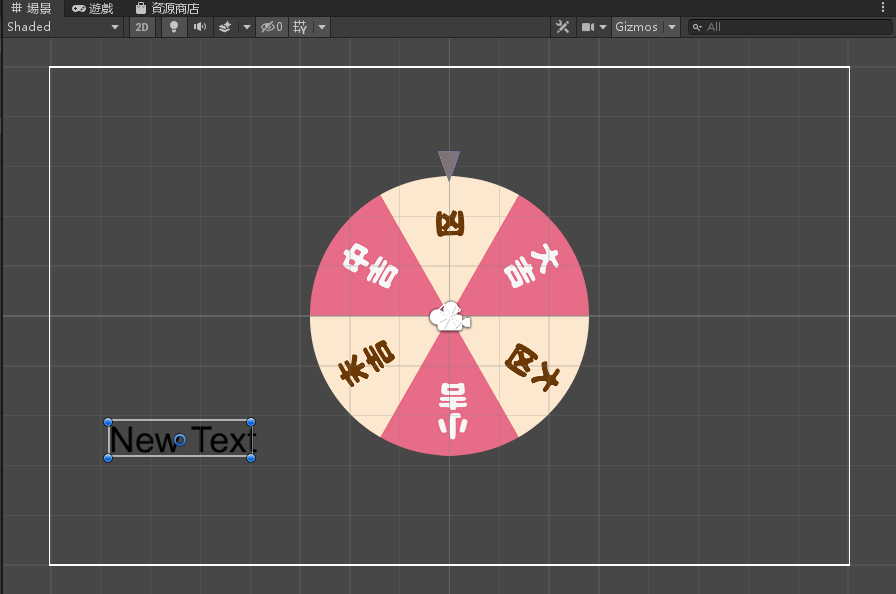

完成

獲取面板中的角度值與顯示運勢文字

修改剛剛的 RouletteController.cs 腳本為以下

using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using UnityEngine.UI;
public class RouletteController : MonoBehaviour
{
// Start is called before the first frame update
float rotSpeed = 0;
private Text Angle;
void Start()
{
Angle = GameObject.Find("Text").transform.GetComponent<Text>();
}
// Update is called once per frame
void Update()
{
if (Input.GetMouseButtonDown(0))
rotSpeed = Random.Range(10.0f, 30.0f);
transform.Rotate(0, 0, rotSpeed);
rotSpeed *= 0.995f;
float now_rotation = transform.localEulerAngles.z;
string now_status = string.Empty;
if (now_rotation > 0 && now_rotation <= 30)
now_status = "凶";
else if (now_rotation > 30 && now_rotation <= 90)
now_status = "大吉";
else if (now_rotation > 90 && now_rotation <= 150)
now_status = "大凶";
else if (now_rotation > 150 && now_rotation <= 210)
now_status = "小吉";
else if (now_rotation > 210 && now_rotation <= 270)
now_status = "末吉";
else if (now_rotation > 270 && now_rotation <= 330)
now_status = "中吉";
else if (now_rotation > 330)
now_status = "凶";
Angle.text = "運勢:" + now_status + "\n角度:" + now_rotation.ToString();
}
}

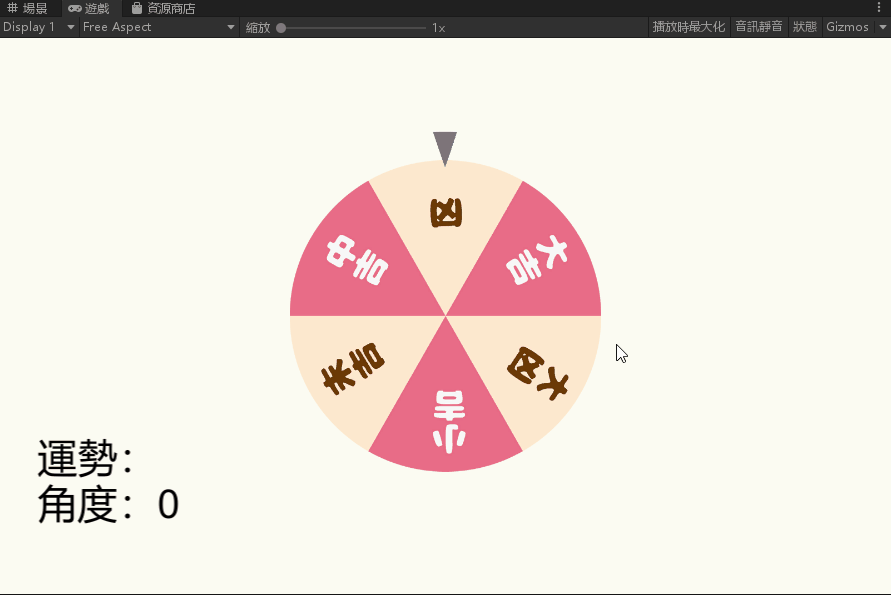

完成
